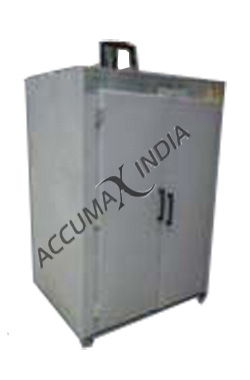

Industrial Oven

Industrial Oven


Industrial Oven

x
{{image.image_title}}
Prev
Next
Industrial Drying Hot Air Oven features outer body support comprising mild steel sheet that comes duly powder coated as well as inner chambers featuring use of stainless steel based perforated trays so as to provide for optimum functional support.


Send Inquiry




Further, the support insulation provided between space of inner chamber and outer wall also ensures of minimum thermal loss and heat dissipation during involved operations. The presence of air ventilators provided on sides of unit as well as caster wheel support for bigger sized units also allows for easy user interface.

Features of Industrial Oven:
  • Triple walled based industrial drying oven
  • Finding suitability for heat treatment, drying as well as baking applications
  • Suitable for use in industries as well as in institutes engaged in production of vaccines
  • Also suitable for drying chemicals, tablets, bottle sterilizing, soaking electronic components like yoke, EHT coils, transformers as well as for pcb processing, armature windings
  • Construction featuring inner chamber made using mild steel that come painted with temperature resistant paint
  • Forced convection system through use of motors & blowers that provides for superior mixing as well as strong dispersion
  • Also supports maintaining higher temperature uniformity inside chamber as well as no cross contamination possibilities
  • Air circulation provided through heavy duty blower with ventilator support provided through top of oven
  • Mineral wool based thermal loss in space between outer body & inner chamber
  • Featuring presence of door gasket that provides for achieving perfect sealing support
  • Comes with stainless steel based inner finish
  • Available in mild steel sheet based powder coated outer finish
  • Made available with shelving support of 2, 3, 4
  • Thermostat based safety device feature
  • Forced convection system based operations
  • Digital temperature controller cum indicator based temperature control provision

Specifications :
Inner Size (WxDxH) 605 x 605 x 605mm
605 x 605 x 910mm
910 x 910 x 910mm
Capacity 224 L, 336 L, 795 L
Temp. Range 50°C - 300°C +/-3°C
MOC Inner Stainless Steel
MOC Outer Mild Steel Sheet Powder Coated
Circulation Forced Air Circulation By ¼ / ½ HP Motor & Axial Flow Fan
No. Of Shelves 2, 3, 4
Insulation Mineral Wool
Safety Device Thermostat
Type Forced Convection System
Temperature Controller Digital Temperature Controller Cum Indicator
Electrical Supply 220/230V AC, 50/60Hz

Applications :
For variety of industrial applications like –
  • Drying components, parts or final products
  • Curing components, parts or final products
  • Baking components, parts or final products
