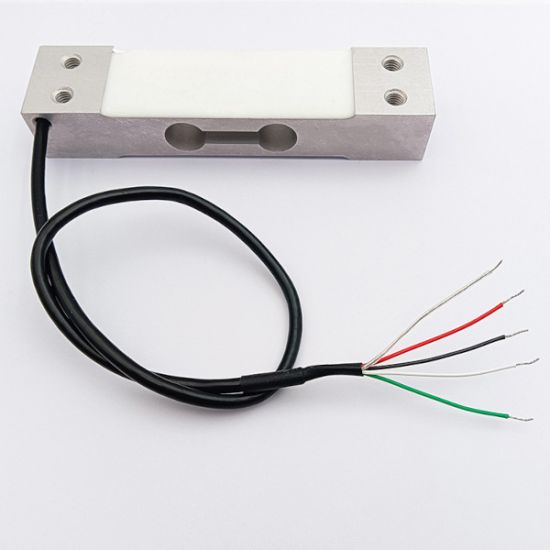

50 Kg Single Point Load Cell

50 Kg Single Point Load Cell


50 Kg Single Point Load Cell

x
{{image.image_title}}
Prev
Next
Capacity: 3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50 Kg
Material: Aluminium alloy
Protection: IP65
Load Cell Type: Single Point Load cell
Coating: Colorless anodized
Usage of Load Cell: Suitable for pricing scales, bench scales etc.
Brand: Zemic
Company: Wholesale Suppliers, Dealers of Load Cell in Delhi
Recommended maximum platform size: 250 x 350 mm



Send Inquiry




Technical Specifications of Single Point Load Cell

Output Sensitivity( = FS )mV/V2.0 ± 0.2
Maximum Capacity( Emax )kg3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50
Accuracy ClassC3/C4/C5
Max. Number of Load Cell IntervalsnLC3000/4000/5000
Ratio of min. LC Verification IntervalY = Emax / vmin10000/15000/20000
Combined Error%FS≤± 0.020/ ≤± 0.015/ ≤± 0.010
Creep Error (30 minutes)%FS≤± 0.0245/ ≤± 0.0184/ ≤± 0.0147
Temperature Effect on Zero (ZTC)%FS/10°C≤± 0.014/ ≤± 0.012/ ≤± 0.009
Temperature Effect on Sensitivity (STC)%FS/10°C≤± 0.0175/ ≤± 0.0131/ ≤± 0.0105
Zero Balance%FS≤± 2.0
Safe Overload%FS120
Ultimate Overload%FS150
Maximum Deflectionmm3kg: 0.5~0.6
5 - 15kg: 0.6~0.7
20 - 50kg: 0.6~0.8
Eccentric Loading Error%Ld/cm± 0.002
Excitation, Recommended VoltageV5 ~ 12
Excitation, Maximum VoltageV18
Input Resistance406 ± 6
Output Resistance350 ± 3
Insulation Resistance (50VDC)MΩ?5000
Compensated Temperature°C-10 ~ + 40
Operating Temperature°C-35 ~ + 65
Storage Temperature°C-40 ~ + 70
Load Cell Weightkg~0.25
Element MaterialAluminium
Ingress Protection (acc. to EN 60529)IP65
Recommended Torque on Fixation BoltsNm< 30kg: 6
>30kg: 10
Load Cell TypeSingle Point Load Cell
CableCable type: Shielded, 4 conductor cable , conductor AWG 26, 3.8mm
PS
  • Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever.
  • Newer versions of the L6D may feature a different cable location, positioned halfway the height of the load cell.
  • This has no effect on the functionality of the load cell, nor on the specifications as described above.
