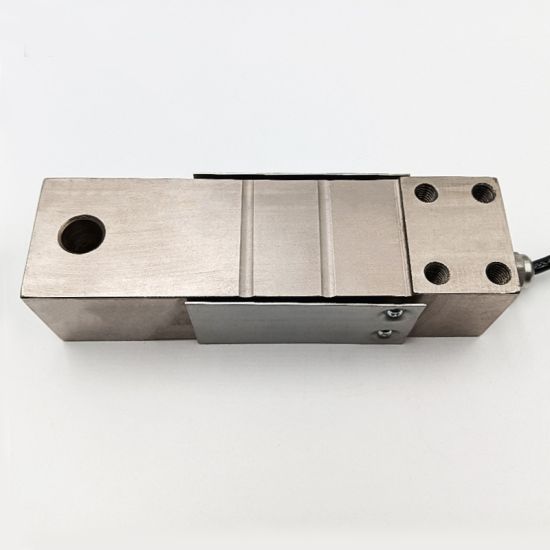

Stainless Steel Single Point Load Cell

Stainless Steel Single Point Load Cell


Stainless Steel Single Point Load Cell

x
{{image.image_title}}
Prev
Next
Material: Stainless Steel/ alloy steel
Ingress Protection: IP67
Load Cell Type: Single point load cell
Usage: It is suitable for the pricing scales, bench scales, belt scales etc
Maximum platform size: 400*400mm.
Brand: Zemic
Model No: B6E3 H6E3 Load Cell


Send Inquiry




Technical Specifications of Single Point Load Cell

Maximum Capacity( Emax )kg20/30/50/75/100/150/200/250/300
Accuracy ClassC3
Max. Number of Load Cell IntervalsnLC3000
Ratio of min. LC Verification IntervalY = Emax / vmin10000
Combined Error%FS≤± 0.020
Creep Error (30 minutes)%FS≤± 0.016
Temperature Effect on Zero (ZTC)%FS/10°C≤± 0.015
Temperature Effect on Sensitivity (STC)%FS/10°C≤± 0.011
Output Sensitivity( = FS )mV/V2.0 ± 0.2
Input Resistance400 ± 20
Output Resistance351 ± 3.5
Insulation Resistance (50 VDC)MΩ≥5000
Zero Balance%FS≤± 1.5
Compensated Temperature°C-10 ~ + 40
Operating Temperature°C-35 ~ + 65
Excitation, Recommended VoltageV5 ~ 12 DC
Excitation, Maximum VoltageV18 DC
Safe Overload%FS150
Ultimate Overload%FS300
Corner Correction 0.02%load value/100mm
CablemmAdopt shielded, 4 conductor cable
Cable Diameter 5mm
Standard cable length: 3m
Material Stainless Steel / Alloy Steel, Single Point Load Cell
Usage of Load Cell Pricing scales, bench scales, belt scales
