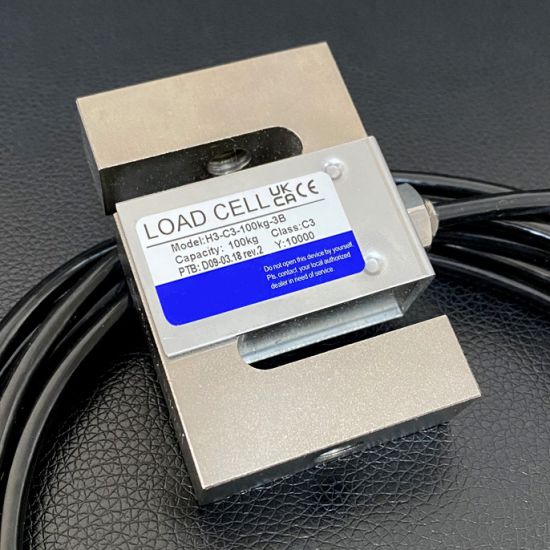

S Type Load Cell 25 Kg to 30 Ton

S Type Load Cell 25 Kg To 30 Ton


S Type Load Cell 25 Kg to 30 Ton

x
{{image.image_title}}
Prev
Next
Material: Alloy Steel, Nickel Plated
Load Cell Type: Tension or compression applications
Load Cell Capacity: 25 kg to 30 Ton
Ingress Protection: IP67
Accuracy: C3/C4
Business Type: Wholesale suppliers, dealers, based in Delhi


Send Inquiry




Features of S Type Load Cell 25 Kg to 30 Ton

MaterialNickel Plated Alloy Steel
Load Cell TypeSingle Point Bending Beam
Ingress Protection (as per EN 60529)IP67
ProtectionHermetically welded
Type:Tension or compression applications
Max. Load Cell Intervals(nLC)3000/4000
Ratio of Min. LC Verification interval Y =Emax/vmin10000/20000
Accuracy ClassOIML R60 C3, OIML R60 C4
Capacity Available25 Kg to 30 Ton
Safe Overload150% of rated Capacity
Ultimate Overload300% of rated Capacity
Minimum Dead Load0 Kg
Output Sensitivity (=FS)2.0 ±0.004 mV/V
Zero Balance (%FS)±1.5
CableShielded 4 conductor cable, diameter 5mm, 3m/6m length, shield not connected to element
Compensated Temperature-10 to +40 °C
Operating Temperature Range-35 to +65 °C
Storage Temperature-40 to +70 °C
Combined Error (%FS)±0.020
Recommended Excitation Voltage5 ~ 12 VDC
Maximum Excitation Voltage18 VDC
Input Terminal Resistance (Ohm)350 ±3.5
Output Terminal Resistance (Ohm)351 ±2.0
Insulation Impedance (M Ohm)≥5000 (50 VDC)
Usage of Load CellSuitable for Hanging Scale, Hopper Scale etc.
