Autoclave in Delhi

Horizontal Rectangular Autoclave features triple walled construction finish and comes mounted on painted mild steel/stainless steel metal finish based tubular stands that provides for necessary operation stability.

Vertical Autoclave comes with 304 grade stainless steel outer construction and fitted with exhaust valve, perforated basket, pressure gauge, safety valve and stand. Further, these also feature pressure control and low water level cut-off system support that provides safety to the element used. The outer body is made of epoxy coated mild steel while inner body is made of stainless steel. It is a low water cut off device with an operating voltage of 220V.

Features of High Pressure Autoclave

• Inner chamber, outer chamber and support ring are fully made of stainless steel (SS-304 grade).
• Heaters cover stand and carrier/bucket are made of Stainless Steel.
• Lid made of thick machined Stainless Steel plate.
• Radial locking lid ensures user safety and safe locking.
• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
• Drain Valve facilitates easy cleaning of the chamber.
• Moulded jointless silicon rubber gasket.
• All internal joints are argon arc welded, ground and polished to give crevice free internals.
• Processor based Controller with time and temperature programmable by user.
• Class 'A' Platinum (Pt-100) sensor, enabling precise and accurate monitoring.
• Low water level alarm and cut off for safety of heater.
• Sensor open alarm and display.
• End of cycle buzzer to alert the user and auto reset.
• Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
• Solenoid Valve for automatic purging and exhaust (user settable).
• Industrial grade energy efficient heaters reduce power bills drastically.

Application of Portable Autoclave

• Table Top Vacuum High Speed Sterilizers are ideal for all applications requiring rapid, reliable and total destruction of all living micro-organisms.
• Ideal for Agricultural Institutes Veterinary Institutes, Opthalmic Surgeons, Dental Surgeons, Surgical Doctors, Polyclinics & Hospitals, Operation Theaters, QC/Micro as a stand by unit.
• Table Top Vacuum High Speed Sterilizers are ideal for all applications requiring rapid, reliable and total destruction of all living micro-organisms.
• Ideal for Agricultural Institutes Veterinary Institutes, Opthalmic Surgeons, Dental Surgeons, Surgical Doctors, Polyclinics & Hospitals, Operation Theaters, QC/Micro as a stand by unit.
• With three pre-vacuum and depth of the pre-vacuum drying function.
• Residual humidity is <0.2; vacuum ability up to -0.85 bar.
• Apply to sterilize various types of instruments like packaged, non-packaged, solid etc.
• To be sure remove the internal air of Hollow instruments with high efficient and sure the higher temperature steam reach every corner.
• There have BOWIE & DICK test and Helix tests for detection of steam penetration.

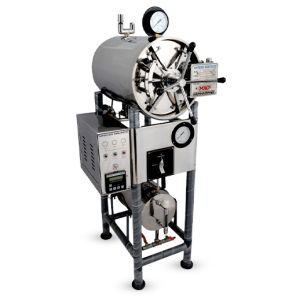

Horizontal Cylindrical Autoclave features triple walled construction support and comes mounted on mild steel/stainless steel based tubular stands. Further, the construction of inner chamber, middle wall and outer wall using stainless steel metal also provides for optimum functionality support. The latest technology incorporated pressure gauge, safety valve as well as steam release valve also provides for achieving optimum functional interface.

Salient Features of Horizontal Autoclave

• Double walled unit horizontally mounted on a sturdy, heavy M.S. duly painted or stainless steel tubular stand.
• Both inner chamber and outer wall made of S.S.
• Pressure is adjustable from 10-20 psi.
• Fitted with pressure gauge, safety valve and steam release valve.
• Available with separate boiler.
• For units fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided.
• Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.

Control Panel and Swithgears

• Automatic Low Water Level Cut-Off Device fitted for general safety of the element.
• Fitted with Automatic Pressure Control Switch.
• Fitted with dial thermometer to indicate the inner chamber temperature.
• Lid is made of thick machined Mild Steel plate lined with stainless steel from inside
• Supplied without jacket (Double walled chamber with separate boiler).
• Industrial grade energy efficient heaters reduce power bills drastically.

Features of Vertical Autoclave

• Inner made of Stainless Steel and outer made of(mild steel) Electro galvanized steel Duly Powder Coated Sheet enamel painted.
• Heaters cover stand and bucket are made of Stainless Steel Sheet.
• Lid is made of Electro galvanized steel Duly Powder Coated plate lined with stainless steel from inside
• Supporting Ring & Legs are made of Electro galvanized steel Duly Powder Coated duly enamel painted.
• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve and water level indicator.
• Drain Valve facilitates easy cleaning of the chamber.
• Gasket is made of neoprene.
• All internal joints are argon arc welded.
• Piezostat (Pressure Control Switch & Low water Level Cut Off system for general safety of the element are available at an extra cost. (OPTION)
• Operating range from 15psi to 20 psi pressure.
• To work on 220/230Volts, 50/60 Hz AC supply.

We offer Vertical laboratory Auto Clave suitable for rapid sterilization under pressure for glassware, solutions, culture media, organic & inorganic materials and other surgical labware.

Portable Autoclave features seamless construction using thick aluminum sheet. These also feature anti-bulging base that provides additional strength and gasket support through food grade synthetic rubber for optimum process reliability and longer service life. These are smaller in size with an aluminum body, and fitted with stainless steel pressure gage, safety valve and steam release valve.

Specifications

• Made from Aluminium
• S.S. Pressure Gauge
• Sizes: 300x300mm, 300x350mm, 300x400mm
• Safely valve, steam release
• Works on 220 V AC.
