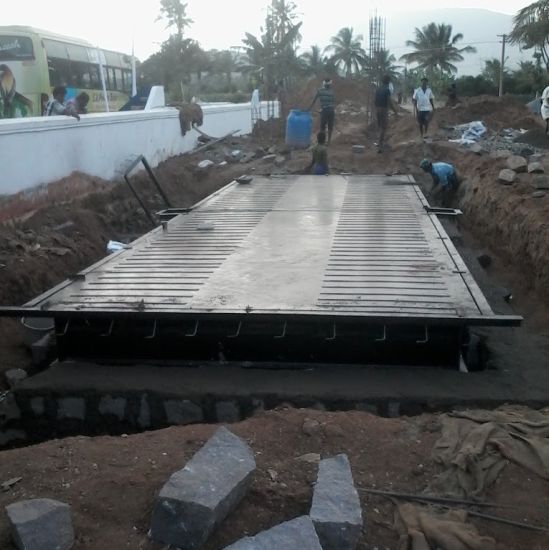

Electronic Weighbridges Pit or Pitless Type

Electronic Weighbridges Pit Or Pitless Type


Electronic Weighbridges Pit or Pitless Type

x
{{image.image_title}}
Prev
Next
Mounting: Pitless Type or Pit Type
Display Type: Digital
Platform: MS Steel or Concrete
Load Cell: Strain gauge based double ended Shear beam load cells
Capacity: Upto 200 tonnes
Wide range of capacities & platform sizes
Rugged structure with ISI approved steel
Power Required: 230V + 10%, 50Hz Single Phase
Micro controller based electronic circuit
Suitable for Public/Private Weighbridges


Send Inquiry




Features of Pit Type Weighbridge

  • Suitable, if there is space limitation, as the ramps are not required on either side.
  • Flush to ground level.
  • Easy movement vehicle on platform
  • Wide flanged beams and other structural members are Accurately fabricated and built to heigh quality engineering Standards for durable and accurate performance.
  • Require less space
  • Easy approach for accessing the lorry / trailer
  • Wide range of capacities & platform sizes
  • Rugged structure with ISI approved steel

Features of Pitless Type Weighbridge

  • Low civil cost and lesser excavation is required.
  • Very rugged and tough in structure.
  • Comes in module form for easy transportation & installation.
  • Suitable for industrial applications
  • Suitable for places where the excavation
  • Work for foundation is difficult
  • Construction of civil foundation is cheaper
  • No water logging during rainy season
  • Pit maintenance is eliminated
  • Easy maintenance since all parts are accessible above the ground level
  • Wide range of capacities & platform sizes

Specifications of Electronic Weighbridge

Platform Size (meter)Capacity (tonnes)Accuracy (kg)
6x3 m10 T2 Kg
6x3 m20 T2 Kg
6x3 m30 T5 Kg
8x3 m30/40/50 T5 Kg
8x3 m60 T10 Kg
9x3 m40/50 T5 Kg
9x3 m60 T10 Kg
12x3 m50 T5 Kg
14x3 m50 T5 Kg
14x3 m60/80 T10 Kg
16x3 m120/150 T20 Kg
18x3 m60/80/100 T10 Kg
18x3 m120/150 T20 Kg
20x3 m80/100 T10 Kg
20x3 m120/150/200 T20 Kg
