Home > Weighing Scale > Load Cells, Digital Load Cell > Load Cell

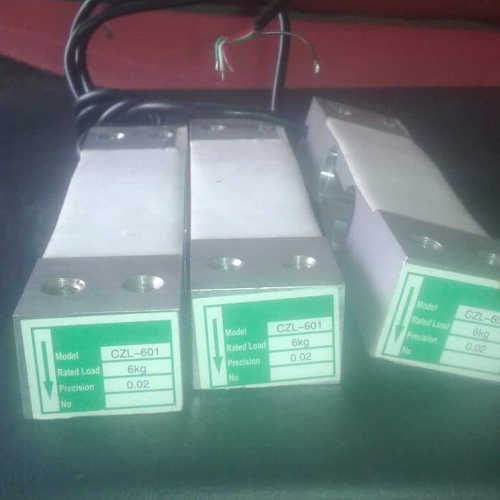

6 Kg Load Cell

Item Code: CZL-601

Type: Strain Gauge based Load cell

Rated Capacity: 6 Kg

Material: Aluminium Alloy, Colourless anodized

Supported Pan size: upto 250mm X 350mm

Precision: 0.02%

Easy to mount, high accuracy

Weighing Capacities: 3, 6, 10, 20, 40, 45, 80 Kg

Application: Mini Table Top Weighing Scale, Table Top Scales, Bench Scale, Price Computing Scale, Retail Scales, Electronic Counting Scales, Check Weighing

Technical Specification of 6 Kg Load Cell

Precision: C2 / C3, 0.02% error (FSO comprehensive)
Supported Platter Size: Upto 250mm x 350mm
Excitation Voltage: 9 VDC to 12 VDC
Nominal Output: 2.0 ± 0.1 mV/V
Safe Load: 120% of Rated Capacity
Ultimate Load: 150% of Rated Capacity
Creep (30 minutes): <±0.025% of FSO
Zero Balance: <±1% of FSO
Non Linearity (Full Scale Output): < ± 0.03% of FSO
Input Resistance: 400 ± 10 ohms
Output Resistance: 350 ± 5 ohms
Insulation resistance: Above 5000 Mega ohms
Temp. Compensation: -10°C to 40°C
Temp. Effect on zero & span: < 0.03% FSO/10 °C
Cable: 4mm, 0.42 mts
