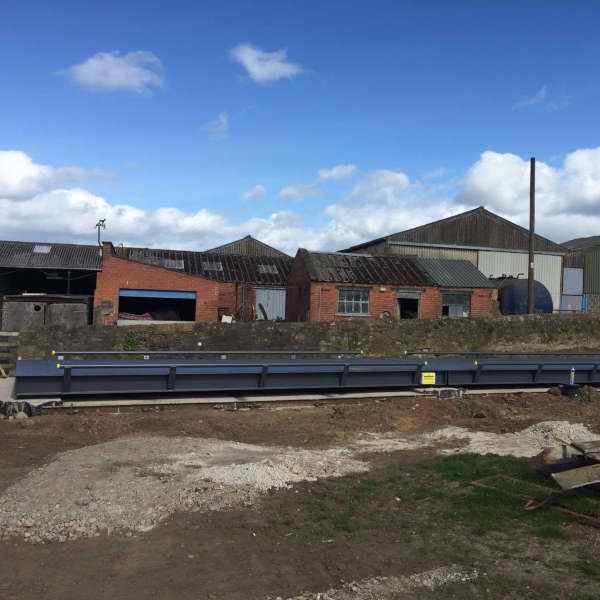

Electronic Truck Weighbridge

We are a leading name in the field of electronic weighbridge and has been manufacturing and installing all types of weighing bridge including pit mounted weigh bridge, pitless type weighing bridge, surface mounted truck scale, mobile or portable scale etc. Being in ISO 9001:2008 certified company, we lay great importance on the quality of our weighbridge which ensures they are sturdy and have a long life span. We have ideal solution for every kind of requirement and we would suggest and install the best weighbridge type as per the site and requirements and specifications.

Technical Specifications Electronic Mobile Weighbridge

Platform Structure	Each platform is seal welded which makes the structure very stiff and load distribution is even because of closed section geometry. When there is concentrated loading on the structure there is no deflection and the load transfer is always vertical on the Load cells.
Weighing capacity	50T approx. Structure design suitable for axle load of 32t (CLC - Concentrated Load carrying Capacity).
Platform design Factor Of Safety (FOS)	1.5 for IS:2062 grade steel used for structural fabrication.
Steel Quality	Grade specific HT steel plates of Jindal/Essar and have much higher strength than the commercially available steel plates used by local fabricators.
Welding	MIG and SAW technology using HT wires, which are compatible to the grade specific steel used in the structure fabrication.
Chemical Treatment	Treated with Pre-Treatment chemical before painting to get rid of any scales/rust/oil/grease to ensure proper adhesion of primer and paint.
Painting	Double layer of epoxy based primer and single layer of epoxy based final paint (Oxford Blue shade) on all sides in order to give a superior appearance.
Nuts and bolts for stopper arrangement	M 16 - confirming to IS - 6761 / DIN 7991 made of DFL high grade alloy steel.

Highlights Electronic Mobile Weighbridge

Cost	Lowest Cost of all types of Weighbridges
Civil Foundation	No Foundation is required
Installation	Quick and trouble free installation
Accuracy	5kg
Portability	Fully portable, can be shifted from place to place and vehicle to vehicle easily.
Vehicles Type	2 axles and 3 axles vehicles
Platform Height	Low Profile platforms with built in ramps
Platform Size	Adjustable platforms to suit different types of trucks
Platform Size	600mm X 2700mm platform with ramp on both sides 2000mm X 2700mm platform with ramp on both sides
Application	Scrap Weighing, Mines, Ports, Food Industry, Cotton Industry, Chemical Industries etc.
Railings	Customized railing for the movement of platforms
Accessories	Necessary mechanical accessories for quick installation
Indicator	Customized indicator compatible for weighment of both 2 axles and 3 axles vehicles
