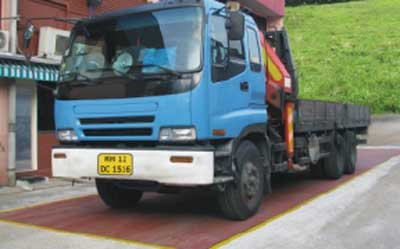

Pit Mounted Weighbridge

Features of our Pit mounted weighbridge

• Our pit type weighbridge is available in steel platform deck and concrete pit construction which would ensure longevity and durability of the weighbridge


• The weighbridge is modular in design which can be easily transported and results in quick installation of the weighbridge, saving time and money.


• Pit mounted weighbridge allows easy access to load cells and other weighing accessories and equipments which helps in easy maintenance of the weighing bridge thus resulting in long life span.


• The weighbridge is made of steel and concrete and is rigid and sturdy in design to ensure frequent use of the weighbridge. The sturdiness and easy maintenance of our pit type weighbridge results in durability and longevity of the weigh bride.


• The weighbridge allows transversal crossing


• Our pit mounted weighbridge occupies lesser space since the platform deck is nearly at the ground level and there is no requirement of ramps for approaching vehicles.

Pit Construction Option

There is option of modular prefabricated concrete pit foundation which offers many benefits including avoiding any form work, saving time in construction of concrete foundation and also results in lower cost for the weighbridge. The other option is hot galvanized to improve its longevity and life span.


Specifications

The length of our pit type weighbridge is generally between 6m to 18m although other dimensions are also available on demand, the width of the platform is 3 meter, capacity of weighbridge is upto 120 tonne.

Accessories

Accessories of our pit mounted weighbridge include Load Cells, Weighing Indicators, Software, Printer, Unattended Weighing System
