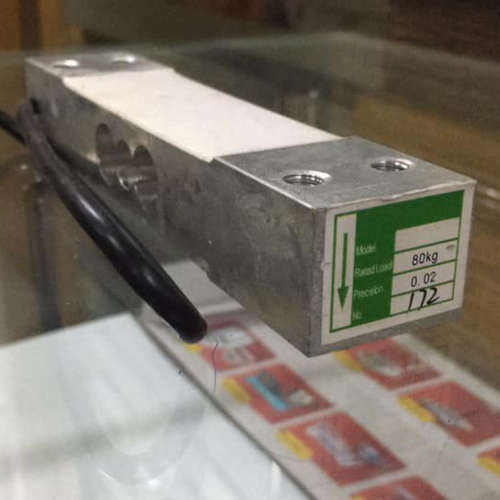

Single Point Weighing Scales Load Cell

Technical Specifications of Single Point Load Cell

• Load Cell Type : Single Point Load Cell
• Material : Aluminum Alloy, SS
• Surface: Anodized Treatment
• Protection : IP65/67/68/69
• Rated Output : 2.0 mv/v ± 5%
• Operating Temperature : -20 °C to 65 °C
• Load Cell Safe Overload : 150% of Rated Capacity
• Ultimate Overload : 200% of Rated Capacity
• Total Precision : C3 class
• Load Cell Excitation Voltage : 5 to 12 VDC
• Zero Balance (Full Scale) : ± 1%
• Input Resistance : 405 ± 6 Ohm
• Output Resistance : 350 ± 3 Ohm
• Nonlinearity (Full Scale) : 0.017%
• Hysteresis (Full Scale) : 0.02%
• Repeatability (Full Scale) : 0.01%
• Creep(30 minutes) : 0.015%c of load cell capacity
• Temperature Effect on Zero (Full Scale) : 0.017% / 10 °C
• Temperature Effect on Span (Full Scale) : 0.014% / 10 °C
• Insulation Resistance : 5000 Mega Ohm(50V DC)
• Cable for Load Cell : 4 wire shielding cable, 420mm, 3mm diameter
• Wholesale Suppliers/Dealers: Scales n Sensors, Delhi
