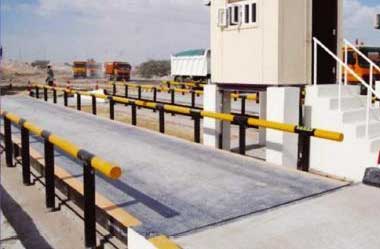

Top Loading Pitless Weighbridge

Highlights of Pitless Electronic Weighbridge

• Capacity range: From 20 MT to 120 MT.
• Low civil construction cost as lesser excavation work is needed
• Very rugged and tough in structure
• Available in module form for easy transportation and installation and reduces installation time.
• Pitless Weighbridge is surface mounted.
• The load cells and the top of deck plate are above the ground level which ensures easy maintenance
• Available in compression, double ended shear- beam, rocker column, single ended beam load cell & weighing module (Assembly)
• Ideal for down side ground level more than road level
• Since platform will be above the ground level, there would be requirement of ramps on both sides for vehicles to mount the weighbridge.
• Because of ramps on both sides, space requirement for pitless electronic weighbridge is more than other types of weighbridges.

Features of Pit Type Electronic Weighbridge

• Weighing Capacity: Range from 20 T to 200 T
• Space Limitation: Most preferred if there is space limitation as ramps are not required in either side
• Weighbridge Level: This fully electronic weighbridge is flush to ground level
• Usage Type: Designed for heavy usage and harsh environment
• Easy movement of vehicles on platform.
• Load Cell: Available in compression, double ended shear beam, rocker column, single ended beam load cell & weighing module (Assembly)
• Durable: This type of pit weighbridge is most durable and can give seamless operation for decades.
• Power Source: 230 V AC
• Platform Type: Concrete/RCC, Steel, Composite

Specifications of Electronic Mobile Weighbridge

• Design: Mobile Weighbridge comes in modular design. Machine supplied is complete with pre-fabricated steel platform, bottom frame, pre-calibrated load cells and ramps
• Civil Foundation: Need no foundation as it is place on ground.
• Installation: It can be installed in hours as low as 2 hours only.
• Portability: Can be shifted to an other site easily. Mobile Electronic Weighbridge can be easily dismantled, transported and re-installed at another site.
• Cost: Cost of Modular Weighbridge is quite low. It helps in significantly saves time & construction costs as no civil foundation is required.
• Power Source: 230 V AC
• Platform Type: Pre-fabricated Steel
