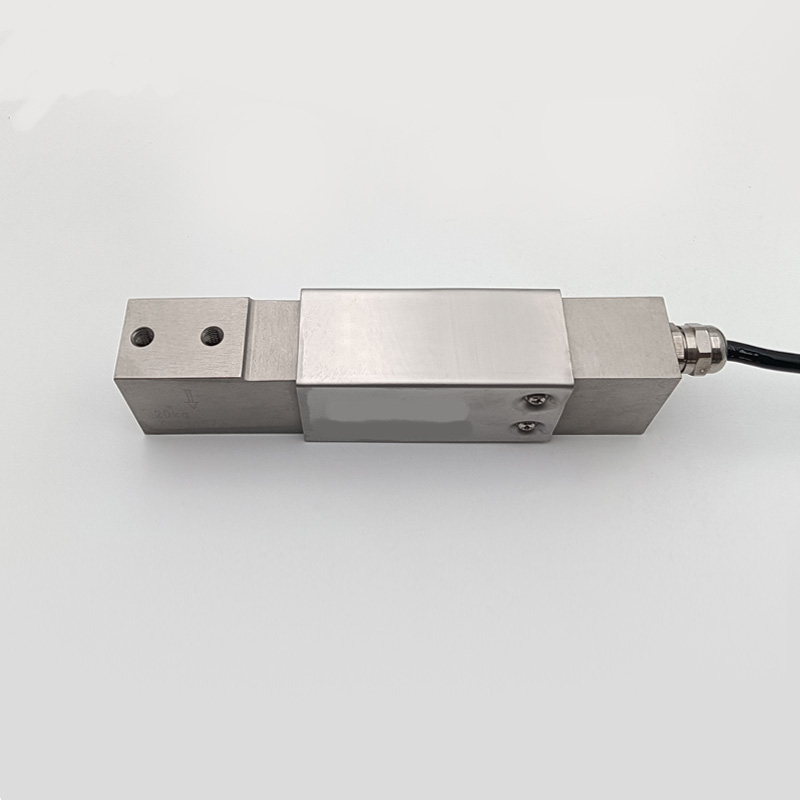

200 Kg Single Point Load Cell

Model No: SSP-PF-SLK

Weighing Capacity: 150 Kg, 200 Kg, 250 Kg

Material: Stainless Steel, Nickel Coated

Business Type: Manufacturer, wholesale suppliers of Load Cell in Chennai

Type: Steel Single Point Load Cell

Excellent Overload Capability, Low profile Load Cell

Features of Single Point Load Cell

Low Profile Load Cell
Excellent Overload Capacity
Low Profile Design
Rust Proof Plating

Technical Specification of Single Point Load Cell

Capacity Range	150 Kg, 200 Kg, 250 Kg
Nominal Sensitivity (mv/V)	2.0 ± 10%
Zero Signal Tolerance	0 ± 3%
Input Resistance (Ω)	415 ± 15
Output Resistance (Ω)	350 ± 3
Recommended Excitation Voltage	10 V (DC)
Maximum Excitation Voltage	15 V (DC)
Linearity Deviation (%FS)	< ±0.020
Repeatability (%FS)	< ± 0.020
Hysteresis (% of Full Scale)	< ± 0.020
Creep (%Full Scale) in 30 min	< ± 0.020
Protection Class of Load Cell	IP67
Material	High Nickel Alloy Steel
Effect of Temperature on Zero (%FS/°C)	± 0.002
Effect of Temperature on Span (%FS/°C)	±0.001
Compensated Temp. Range	-10 to 40 °C
Operating Temp. Range	-20 to 70 °C
Combined Error (% of Full Scale)	< ± 0.023 max
Isolation Resistance (@50 VDC)	≥1000 MΩ
Max Limit Force (%FS)	150
Breaking Force (%FS)	300
Cable	4 core shielded & braided, polyurethane cable 24 AWG
Usage	Low Profile Health Scale, Agro Scale, Poultry Scale
Type	Shear Beam Stainless Steel Single Point Load Cell
