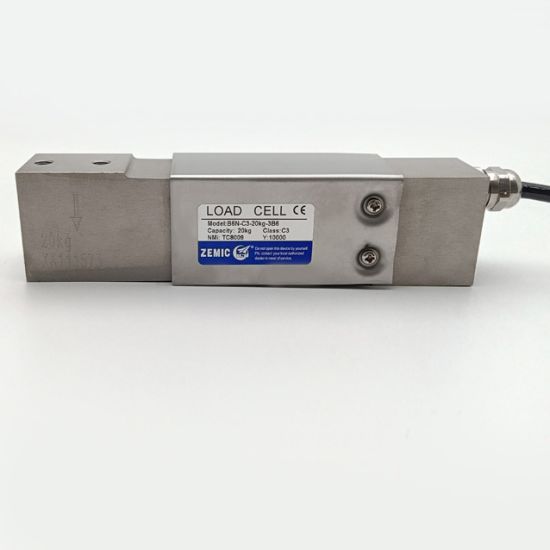

Zemic Single Point Load Cell

Zemic Single Point Load Cell


Zemic Single Point Load Cell

x
{{image.image_title}}
Prev
Next
Material: Stainless Steel
Capacity: 5 Kg to 200 Kg
Ingress Protection: IP67
Type: Bending Beam Single Point Load Cell
Max Platform Size: 400 x 400 mm
Model: No: B6N
Brand: Zemic
Accuracy Class: C3
Business Type: Wholesale Suppliers, Dealers of Load Cell in Ahmedabad, Gujarat



Send Inquiry




Technical Specification of Zemic Single Point Load Cell

Model No.B6N
Accuracy ClassC3
MaterialStainless Steel SS
Ingress ProtectionIP67
TypeBending Beam Single Point Load Cell
UsageSuitable for weighing scale like platform scale, belt scales
Max Platform Size400 x 400 mm
Accuracy ClassOIML R60 C3
Maximum Weighing Capacity (Emax)5 Kg to 200 Kg Load Cell
Output Sensitivity (=FS)2.0 ±0.002
Max. Load Cell Intervals (nLC)3000/4000
Combined Error %FS±0.0230/±0.0175
Minimum Dead Load0 Kg
Safe Overload (% of Emax)150
Ultimate Overload (% of Emax)300
Zero Balance %FS±1.0
Excitation Voltage5 - 12 V DC
Input Termial Resistance (ohm)383 ± 4
Ouput Termial Resistance (ohm)350 ± 3.5
Insulation Impedance (M ohm)≥5000 (at 50 V DC)
Compensated Temperature-10 ° C to 40 ° C
Operating Temperature-35 ° C to 65 ° C
Storage Temperature-40 ° C to 70 ° C
Recommended on fixation bolts (N.m)M6: 10
Cable6 conductor shielded cable,
Load Cell Cable Length1 meter
Cable Diameter05mm
BrandZemic
