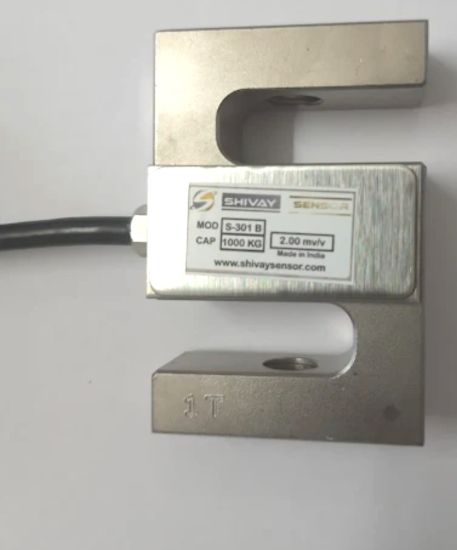

S Type Load Cell 1000 Kg

S Type Load Cell 1000 Kg


S Type Load Cell 1000 Kg

x
{{image.image_title}}
Prev
Next
Capacity available: from 5 kg to 5 Ton
Material: Aluminium
Model No: S-301B
Output: 2.00 mv/v
Operating Temperature: -30°C to 85°C
Made in India, Shivay Brand, All India Delivery, Wholesale Price


Send Inquiry




Technical Specifiction of S Type Load Cell

  • Capacities: 15, 30, 50, 100, 300, 500, 1000 Kg
  • Protection: IP67 protection rating
  • Non-Repeatability: 0.01% F.S.
  • Output: 2mV/V ± 10%
  • Temperature effect on zero: 0.02% / °C
  • Temperature effect on full scale output: 0.02% /°C
  • Compensated Temperature Range: -10°C / +40°C
  • Operating Temperature Range: -30°C / +85°C
  • Creep error after 4 hours: 0.03% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 381 ± 10 Ohm
  • Output Resistance: 350 ± 3 Ohm
  • Zero balance: ± 2% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 300% F.S.
  • Cable: 4-wire shielded cable, 5m long, 5.5 mm diameter
  • Usage: Weighing hoppers, tanks and with other weighing devices.




Indian Weigh Bridge and Scales Industry, Mumbai
Weider Weighing & Automations, Coimbatore
Sensor Techniques, Ahmedabad
Expert Weighing Solution, Ahmedabad
Jay Maa Sensor, Ahmedabad

Shivay Sensor is a professional manufacturer of a premium range of Load Cell and Weighing scale. Backed by industry experience of 10 years, we are known as one of the most trusted names in the field of supplying of Load Cells. We are regularly offering of high class S Type Load Cell. Shivay Sensor is providing its excellent services to customers by offering a complete range of Shear Beam Load Cell regularly. Our varied range of product is available in different size and shapes. Our all products are matched with international standards and provide maximum satisfaction to the clients.

Our wide experience and knowledge in this field helps us to cater our products at competitive price in the market. These high precision load cells are used in many industries such as process weighing, universal testing machine, weight checker, medical device, industrial and agricultural vehicles. These Products are accurate in nature & gives the perfect measurement. Shivay Sensor engaged in providing supreme quality Load Cells.

We use superior quality raw material to meet international standard and cater our services as per the need of our clients. Our products are mostly used in the Automotive, Aerospace, and Automated Industry. We believe in providing better quality product for its suitability.We have customers from all over India. Our product has vast applications in many industries. We always welcome our customers with a small to large need.
