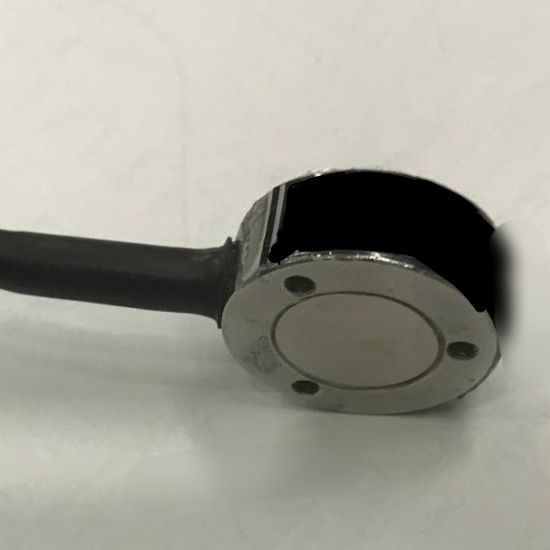

Button Load Cell

Button Load Cell


Button Load Cell

x
{{image.image_title}}
Prev
Next
Item Code: SLK-56562
Material: Stainless Steel
Load Cell Capacity: Upto 10 Ton
Protection Grade: IP67
Business Type: Trusted manufacturer, wholesale supplier of Load Cell in Delhi



Send Inquiry




Features of Button Load Cell

  • Button load cells is also known as button force transducers.
  • It is tiny, strain gauge based sensors used in a wide variety of applications including test and measurement and general measurement tasks.
  • Robust construction
  • High Accuracy & Precision, durable
  • It comes in variety of sizes, ranges and outputs
  • Current Calibrated
  • Button Load Cell are suited for installation in machines subject to high levels of vibration.


Technical Parameters of Button Load Cell

MaterialStainless Steel
Load Cell CapacityUpto 10 Ton
Ingress ProtectionIP67
Output Sensitivity (% of FS)2.0 ± 0.002 mV/V
TypeCompression Load Cell
Combined Error ( % of FS)± 0.0123
Creep %FS (@ 30 minutes)< ± 0.03
Temperature Effect on Zero (%FS/10°C)< ± 0.07
Temperature Effect on Span (%FS/10°C)< ± 0.04
Zero balance(% FS)0 ± 1.5
Safe Overload 150
Ultimate Safe Overload (% FS)200
Recommended Excitation Voltage10 ~ 12V DC
Maximum Excitation Voltage15V DC
Input Resistance350 ± 10 Ω
Output Resistance300 ± 5 Ω
Insulation Resistance @ 50VDC >= 1000 MΩ
Compensated Temperature Range-10°C to 45°C
Operating Temperature Range-20°C to 70°C
Load Cell Intervals (nLC)3000
Cable6mm, 5 mtr.
Usage of Button Load CellFor test and measurement etc.
Features of Load CellEasy to Install, High Accuracy, Rugged and Resistant, Tiny Construction
