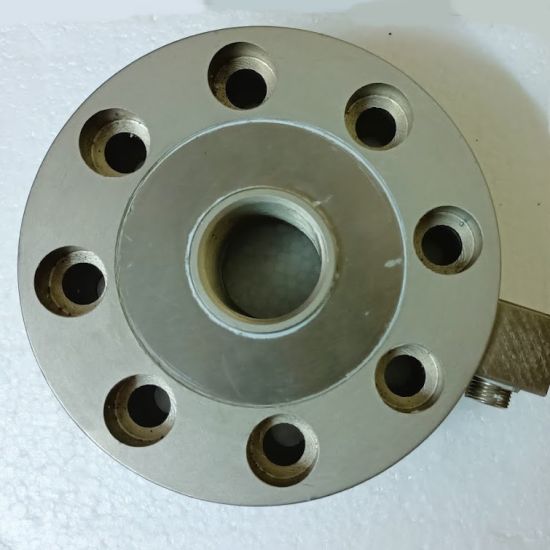

Pancake Universal Load Cell

Pancake Universal Load Cell


Pancake Universal Load Cell

x
{{image.image_title}}
Prev
Next
Load Cell Capacity: 200 Kg, 500 Kg, 1 Ton, 2 Ton, 3 Ton, 5 Ton, 10 Ton, 20 Ton, 30 Ton, 50 Ton, 100 Ton
Pancake Univeral Load Cell can measure both tension and compression force
Material: Alloy Steel
Organisation: Manufacturer, wholesale dealers of load cell in Delhi
Precision Class: C2



Send Inquiry




Features of Pancake Universal Load Cell

  • Pancake load cell is also known as universal load cell as it is capable of measuring both tension and compression force and provide reliable result in both parameters in single installation.
  • It comes in variety of sizes, ranges and outputs
  • Universal Load Cell are rugged and resistant
  • With its compact construction, it can perform in rough environment as well as laboratory and test purposes in the most demanding applications
  • There are many different uses of pancake load cell depending on the design of the application.


Technical Parameters of Pancake Universal Load Cell

TypeTension/Compression Load Cell
Load Cell Capacity200 Kg, 500 Kg, 1 Ton, 2 Ton, 3 Ton, 5 Ton, 10 Ton, 20 Ton, 30 Ton, 50 Ton, 100 Ton
Insulation Resistance MΩ >5000 (100 VDC)
Precision ClassC2
Excitation Voltage9 ~ 12V DC
Composition Error ( % of FS)± 0.03
Output Sensitivity (% of FS)2.0 ± 0.008 mV/V
Compensated Temperature Range-10°C to 40°C
Use Temperature Range-20°C to 55°C
Non Linearity %FS< ± 0.017
Hysteresis %FS< ± 0.02
Temperature Effect on Zero (%FS/10°C)< ± 0.05
Temperature Effect on Span (%FS/10°C)< ± 0.03
Repeatability (%FS)< ± 0.01
Creep Error % FS (@ 30 minutes)< ± 0.03
Safe Overload 150
Ultimate Safe Overload (% FS)200
Zero balance(% FS)0 ± 1.0
Input Resistance750 ± 10 Ω
Output Resistance700 ± 5 Ω
Defend GradeIP66
Cable6mm, 3 mtr.
MaterialAlloy Steel
Usage of Pancake Load CellSuitable for all types of weighbridges, truck scale, silos and tank weighing system
Features of Load CellEasy to Install, High Accuracy, Rugged and Resistant, Compact Construction
