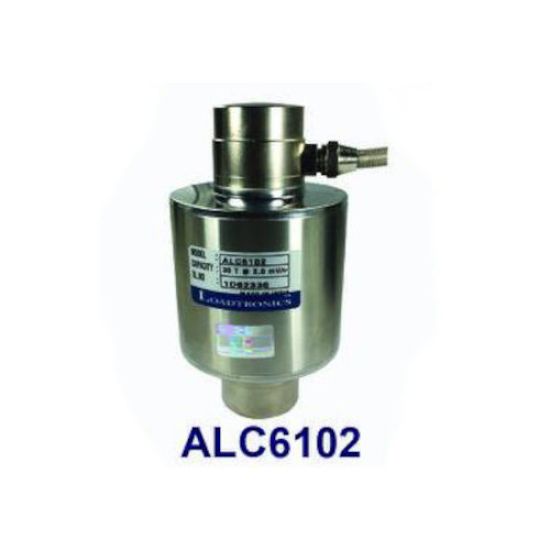

20 Ton Compression Load Cell

Capacities: 20 Ton, 30 Ton Load Cell

Material: Alloy Steel Construction

Business Type: Leading manufacturers, suppliers of Load Cell in Chennai

Features: Sturdy Design, Easy Installation, High Accuracy, Reliable

Type: Compression Type Load Cell

Usage: Weighbridge, Truck Scale

Model No: ALC6102

Features of Compression Load Cell

Type	Compression Load Cell
Load Cell Capacity	20 Ton, 30 Ton
Material	Alloy Steel Construction
Ingress Protection	IP68
Usage	Suitable for Weighbridge, Hopper Scales, dynamic scales and other electronic devices
Features of Load Cell	Sturdy Design, Easy to Install, High Accuracy & Precision, Reliable, Durable
Input Resistance	1160 ± 10 Ohms
Output Resistance	1000 ± 3 Ohms
Output Sensitivity	2.0 ± 0.4% of FS mV/V
Excitation Voltage	10V DC
Maximum Excitation Voltage	15V DC
Zero balance(% FS)	0 ± 2.0
Insulation Resistance	>1000 Mohms
Combined Error	± 0.025 % of Full Scale
Creep Error % FS (@ 30 minutes)	< ± 0.020
Safe Overload	150% FS
Ultimate Safe Overload	300% FS
Non Linearity	< ± 0.025
Compensated Temperature Range for Load Cell	-10°C to 40°C
Operating Temperature Range	-20°C to 70°C
