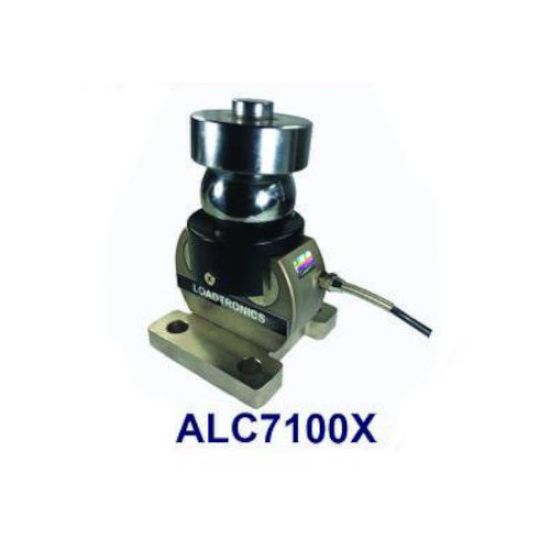

Ball Type Weighbridge Load Cell

Capacities: 10 Ton, 20 Ton, 30 Ton Load Cell

Material: Alloy Steel Construction

Business Type: Prominent manufacturers, wholesale suppliers of Load Cell in Chennai

Features: Easy Installation, High Accuracy, Reliable

Model No: ALC7100X

Usage: Weighbridge Load Cell, Tank Weighing

Features of Weighbridge Load Cell

Type	Dual Shear Beam Ball Type Load Cell
Load Cell Capacity	10 Ton, 20 Ton, 30 Ton
Material	Alloy Steel Construction
Ingress Protection	IP68
Usage	Suitable for all types of weighbridges and tank weighing system
Features of Load Cell	Easy to Install, High Accuracy & Precision, Reliable, Durable
Input Resistance	770 ± 10 Ohms
Output Resistance	700 ± 5 Ohms
Output Sensitivity	2.0 ± 0.4% of FS mV/V
Excitation Voltage	10V DC
Maximum Excitation Voltage	15V DC
Zero balance(% FS)	0 ± 2.0
Insulation Resistance	>1000 Mohms
Combined Error	± 0.025 % of Full Scale
Creep Error % FS (@ 30 minutes)	< ± 0.020
Safe Overload	150% FS
Ultimate Safe Overload	300% FS
Non Linearity	< ± 0.025
Compensated Temperature Range	-10°C to 40°C
Operating Temperature Range	-20°C to 70°C
Type	Ball Type Weighbridge Load Cell
