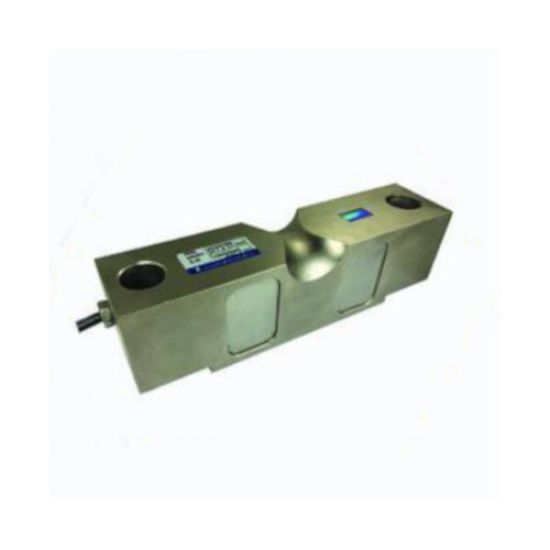

Double Ended Shear Beam Load Cell

Material: Alloy Steel Construction

Load Cell Capacity: 22.5 Ton, 34.0 Ton

Model No: ALC 2100

Business Type: Manufacturers, Wholesale Suppliers of Load Cell in Chennai

Type: Double Ended Shear Beam

High Accuracy Load Cell, Easy to Install, Sturdy Design

Features of Double Ended Shear Beam Load Cell

High Accuracy
Dual Shear Beam
Easy Installation
Reliable Performance
Item Code: ALC2100

Specification of Shear Beam Load Cell

Material	Stainless Steel SS
Protection class	IP67
Capacity	22.5 Ton, 34.0 Ton
Load Cell Size	62 x 75 x 260 mm
Usage	Suitable for electronic truck scales, Hopper scales, dynamic scale and other electronic weighing devices.
Feature	A sturdy design with easy installation.
Sensitivity(mV/V)	3.0 mv/V ± 0.4%
Input Resistance	700 Ohms ± 10
Output Resistance	700 Ohms ± 5
Zero Balance	0 ± 2%
Excitation Voltage	10 VDC
Maximum Excitation	15 VDC
Safe load	150% of Full Scale
Protection Class of Load Cell	IP67
Ultimate Overload	300% of Full Scale
Creep 30 minutes:	< ± 0.020
Non Linearity	< ± 0.025
Compensated Temperature Range	-10°C / 40°C
Operating Temperature Range of Load Cell	-20°C / 70°C
Insulation Resistance	> 1000 Mohms
Type	Double Ended Shear Beam Load Cell
