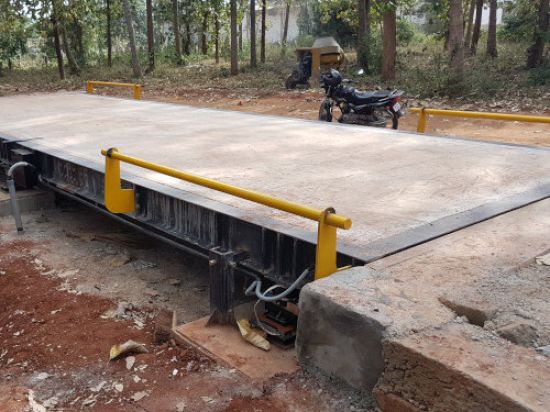

Steel And Concrete Electronic Weighbridge

The advantages of composite deck weighbridge:

• Highly cost effective
• Ideal for installation in saline environment
• Regular maintenance not required
• Very quick to install
• Fully washable without fear of rusting
• Good for installations in marine factories, container freight stations and coastal areas
• We setup both pit type and pitless steel and concrete weighbridge

Robust Load Cells and Digitizers
The most important components of an electronic weighbridge are the load cells and digitizers. We have made both of them very robust which ensures best performance from the weighbridge.

Highly Durable Girders and Plates
A truck to be weighed is directly driven to the platform of a weighbridge and hence, the platform is subjected to the entire load and vibrations created by a moving truck. Our weighbridge platforms (made of steel) are designed very carefully to withstand these loads without damage and is highly durable. The girders and plates used in our platform are selected very carefully and undergoes stringent quality checks. They are procured only from reputed manufacturers like SAIL / TISCO.

Reliable Mounting Assembly for Load Cells
The next most important component is the mounting assembly for load cells. This transfers the load from the platform to the load cells. This is a cradle assembly which is free to move in the horizontal axes and hence takes all side loads generated due to the vehicular movements on the platform. The mounting assembly consists of three parts namely , the Bottom Plate, Rocker assembly and Top Bracket.

Low Resistance Cables and Weather Proof Junction Box
The signal from the load cells (in milli-volt) is carried to the digitizer, in the control room, through a 4 - core shielded cable. The cable has a very low electrical resistance and hence, no loss of signals. The cables from different load cells , in a weighbridge, meets in a weather proof junction box. The junction Box is of fully molded type and houses the necessary terminal blocks for interconnection of load cell out puts. The Junction box also carries a set of surge arrestors, to protect the entire system from lightning and electrical surges.

Truck Position Sensor ( TPS )
Statweigh has unleashed Truck Position Sensor (TPS) a unique system, to check the position of a truck on the platform.

The Truck Position Sensor ensures that the truck is completely on the platform, and no part of the tyre is protruding outside. This totally eliminates the chances of manipulating the weight reading, by partially keeping the truck tyre, outside the weighing platform. If a portion of the tyre is outside the weighing platform, the system will refuse to display any reading.
