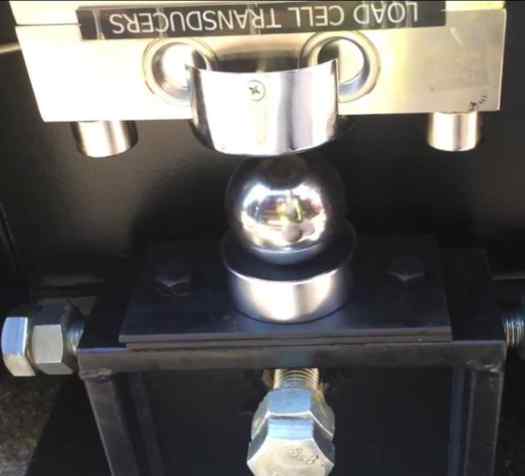

Manufactured using top grade components and cutting-edge techniques, Load Cell supplied by us can be purchased in diverse specifications. Having wide demands across the globe, these are used as a transducer which converts force into a measurable electrical output. Owing to its extended service life and trouble free functioning, Load Cell supplied by us is applauded among our patrons. We source our load cells only from reputed vendors with a proven track record. We are suppliers of different types of load cells including Compression Load Cell, Double Ended Shear Beam Load Cell, S Style Load Cell etc.


Send Inquiry




Specifications of Compression Load Cell

Capacity10 to 200 Ton
MaterialStainless Steel
Ingress ProtectionIP68
ProtectionHermetically Sealed
Maximum Safe Overload150% FS
Ultimate Safe Overload300% FS
Temperature Range-20 to +70 o C
Cable Length1 - 20 meter

Features of Compression Load Cell
  • Application: Weighbridge,Wagon Tripller, Tank, Hopper weighing,
  • This cell is designed to withstand rigorous shock loads prevailing in heavy duty weighments
  • This load cell can be supplied with suitable mounting module WM-V, upon request
  • Apart from weighing, this also finds applications in tensile testing
  • It is manufactured using quality raw materials and latest technology.



Specifications of S Type Load Cell

Capacity10 to 100 Ton
MaterialAlloy Steel
Ingress ProtectionIP68
ProtectionHermetically Sealed
Creep Error (30 minutes)± 0.03% FS
Zero balance± 1% FS
Recommended Excitation Voltage5 to 15V DC
Maximum Safe Overload150% FS
Ultimate Safe Overload300% FS
Temperature Range-35 to +65 o C
ApplicationCrane Scale



Specifications of Beam Load Cell

Capacity50 to 1000 Kg
MaterialAlloy Steel
Ingress ProtectionIP68
ProtectionHermetically Sealed
Creep Error (30 minutes)± 0.03% FS
Zero balance± 1% FS
FeatureLow Deflection
Recommended Excitation Voltage5 to 15V DC
Maximum Safe Overload150% FS
Ultimate Safe Overload300% FS
Temperature Range-30 to +70 o C
ApplicationPortable Weighbridge

Application of Beam Load Cell
  • Low profile platform scale
  • Pallet truck weighing
  • Harsh environment weighing
  • Retail Scale
  • Mobile Weighbridge
  • Food industry weighing
