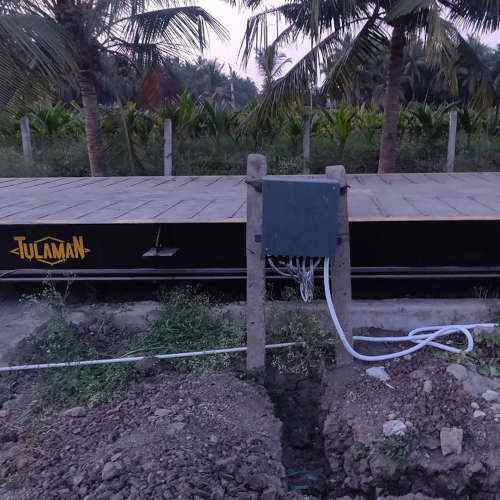

High Accuracy Electronic Weighbridge

Why Choose Us?

• Established in 1968
• ISO 9001 : 2015 Certified
• 5000+ Clients
• 1,00,000+ Installations
• 24/7 Services
• 0.0001g to 250Tones

Technical Specifications for Electronic Weighbridge

Features of Electronic Weighbridge

• Dual Range/ Dual Accuracy.
• Auto Calibration / Smart Calibration.
• Password, hardware protection for calibration and other features.
• Operator login for 5 members.
• Five fields data entry provision like Veh, Prop, Party, Tpt, Dest. etc.. Along with RST no., Gross, Tare, Net, Date and Time.
• Reports like all field wise, daily, weekly, monthly, full/pending and operator wise.
• Weight record storage up to 1500 Vehicles depending on options programmed.
• Built in real time clock with battery backup for storage data up to 72 hrs.
• Charges option for public weighbridges.
• Print/ view/veh./RST wise recall facility.
• Display of Weighment kg/ton.
• Power ON weight.
• Calibration date viewing.
• Weighment ticket type normal / Pre-printed.
• V.B. Based Weighing software for P.C
• DLL file will be provided for executing your own applications.

• Pit / Pit less Type Structures.
• Fully Fabricated Structure.
• Robust Construction.
• Withstands Dynamic and Side Loads.
• Longitudinal, Lateral Stoppers Provided.
• Anti Skid Strips Provided.
• 150% Over Load Protection.
• Ease of Installation.

Load Cells

• Compression type.
• In built surge Protection.
• Immune to side Loads.
• Hermetically Sealed.
• Helium leak tested and they exceed the requirement of IP 68.
• Easy for Installation.
• We offer our modern type of Electronic Weighbridge The Load cells are immune to side loads, hermetically sealed and are helium leak tested. They exceed the requirement of IP 68. Load Cells are temperature compensated in the range of 10 ^o degrees C to + 40 ^o degrees C. They have a safe overload capacity of 200% and ultimate load capacity of 300%. They are completely immune to side loads. Load Cells are to OIML-R60 International Standards.

Technical Specification

• Operating Voltage: 90 to 270 V., A.C, 50/60 Hz, Fuse Protection: 2.5 A.
• SMPS type Power Supply with EMI/RFI filters with surge/spike Protection.
• Operating Temp. Range: 10 c to 55 c.
• Humidity: 0 to 95% relative humidity non condensive.
• ADC Error, Excess Load Buzzer for Fault & Data Entry.
• 16 characters X 2 Lines LCD Display with Back Light for data Entry, Weight, Date and Time.
• 6 Digit, 7 Segment,14mm Character Height Bright Red LED Display for Weight.
• 1/2", 1", 2.3", 4", 5 digit, 7 segment Bright Red LED Extra display.
• RS 232-C Serial Port to connect P.C.
• Centronics Parallel port to connect printer
• Supports up to 8 Load cells of each 350 ohms
• 104 Keys Alpha Numeric Computer key Board for data entry.
• Graphic LCD display 1030 X 40 with blue back light
