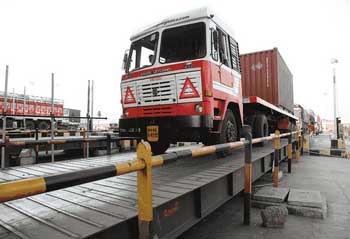

Digital Weighbridge

Weigh Capacity: 20 MT up to 240 MT
Product Code: VS-34583
Type: Pit/Pitless Type Electronic Weighbridge
Brand: Vishwakarma Brand
Platform: Mechanical Steel Platform
Platform Size: Up to 25 m x 3.50 m platform size
Load Cell: Four/Six/Eight/Ten Digital Load Cells

Specifications of Digital Weighbridge

The digital Weighbridge shall comprise of a mechanical platform structure resting freely on Four/Six/Eight/Ten Digital Load Cells. The Weighbridge would be pit or pitless weighbridge i.e. at the ground level or above the ground level. It can be extended up to 24 mt.

Type of Weighbridge	Static fully Electronic Modular-Bolted Retrofit expandable multi deck Universal Design.
Type of Platform	Modular Cubical sections to enable future expansion and relocation
Structural Standard	In accordance to IS 2062/2082 Tested: STAAD III PRO
Side Forces Elimination	Special Lateral and Longitudinal Tie-rod Assembly arrangement
Paint	Epoxy paint with undercoated primer oxide
Load Cell	FLINTEC AG LOADCELLS RC3
Loadcell Rated Output	2MV/V
Loadcell type and material standard protection	Stainless Steel 17-4 PH (1.458) in accordance to DIN 40.050 IP 68
Safe Load	200%
Ultimate Load	300%
Operating Temperature Range	-40 to +80^oC
Junction Box Protection Class	IP 65
Junction Box Glands for cable entry	Double Compression type
Indicator	Stainless steel table top housing with CE approval MATRIX-9000
Indicator temperature range	-10 to +50^o C
Indicator Interfaces	2 nos. RS232, 1 nos. RS485, USB direct interface
Power Supply	220/240V AC, -10% to +15%
Calibration	Front panel calibration
Weighbridge Software	Matrix 9000 standard software with MS-SQL Server/MS-Access database support.
Approvals	Only Indian company to have department of W&M Govt. of India Model approval up to 200 MT

Why us for Digital Weighbridge?

Lowest Cost of Ownership ROI
Dedicated Customer line support
Remarkable strength: weight Ratio
Best design aesthetics in the Industry
Complete Non-Shrinking Grouting parts
Specialised Foundations without RCC walls saving 50% Foundation costs for the customer
With decades of experience in the industry, we are today counted amongst eminent manufacturers and suppliers of high quality range of weighbriges for almost all types of usage including commercial, industrial and public.
Our weigh bridge systems are appreciated for their superior design, higher strength, optimum operation, seamless performance, durability and easy maintenance.
These are available to our clients at very competitive price.
We ensure that we use only high quality raw materials and components to manufacture all weighbridges at our ultra modern manufacturing unit equipped with all the latest and modern machinery and innovative technology to ensure defect free products are manufactured and delivered to our clients and they have a hassle free experience with us.
